Friday, December 13, 2013
Friday, May 31, 2013
Thursday, May 2, 2013
Wednesday, January 30, 2013
mounting a Unity/Nash
seems like a mystery to a lot of people...just in my few minutes of searching 'unity light mount' i found thread after thread of guys trying to come up with a way around the lack of any kind of tab or clevis on the bucket.
Here's my solution...
Lathe'd up a 1" delrin bar into a ball end with a ground HSS form tool then drilled a .375" hole through the center and tapped for 3/8-16.
milled the some flats and cross drilled a hole for a 1/4-20 retaining bolt.
made up a little tab with an angled bottom (to match angle of forks) and spray bombed it.
viola
fully adjustable and the perfect balance or form/function...just like this old light.
Here's my solution...
Lathe'd up a 1" delrin bar into a ball end with a ground HSS form tool then drilled a .375" hole through the center and tapped for 3/8-16.
milled the some flats and cross drilled a hole for a 1/4-20 retaining bolt.
made up a little tab with an angled bottom (to match angle of forks) and spray bombed it.
viola
fully adjustable and the perfect balance or form/function...just like this old light.
Monday, January 14, 2013
Behner machine works horizontal bandsaw clamp
As seen in action on my Johnson 'model J'
These are pretty damn nifty for holding small and or irregular shaped pieces on the horizontal, could have some potential in the mill vise as well.
Thanks again Ray
Thursday, January 3, 2013
68 Commando rebuild
fun little rebuild we did last year.
new tins/new paint.
new exhaust
new cables
carb rebuild
new tail liight
etc, etc.
then i wrecked it on the shake down run and got to do it all over again..fun times.
Monday, March 19, 2012
some stuff
few things we have been up to aside from setting up the new digs. busy doesnt describe whats been going on around here for the past year...but i do get your emails and i'm getting back on the computer, i swear. Pics coming in 3...2...1...
Tuesday, November 29, 2011
Thursday, June 30, 2011
updates coming
been super super busy and have had a weird and not so good few months but there is tons of good stuff going on in the shop and i will throw up some updates next week.
got some major progress on a few full builds plus a slew of parts and smaller projects knocked out.
got some major progress on a few full builds plus a slew of parts and smaller projects knocked out.
Tuesday, April 5, 2011
Friday, March 18, 2011
Friday, March 4, 2011
Evo-Done
Brand new late model narrow glide front single disc.
Custom built 2-1 pipes

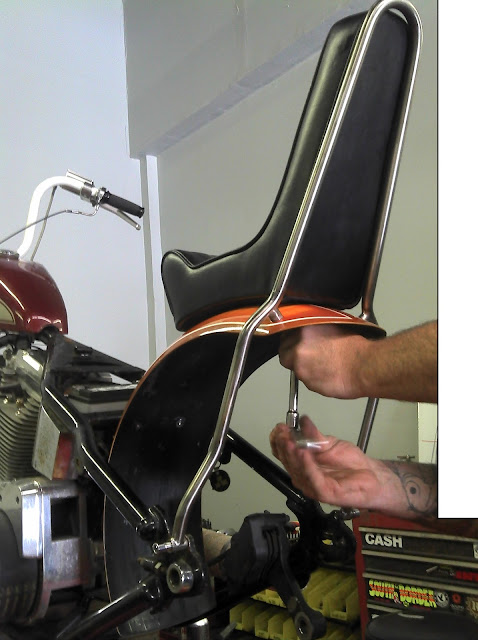

5/8" 304 stainless sissy bar made to perfectly match the back of the seat
Fender narrow/re radius and re work/fix of fender mounts
Gas tank rework, petcock bung change, filler neck swap plus body work
New tires front and back
white powder coated 'monkey' bars from Front Street Cycle
Broken exhaust stud drill out
New platforms and controls
New passenger pegs
Lots of other little bits and pieces and all the work that goes along with getting it there.
the red sporty tank is just on there for mock up while the tank liner cured up, the real tank is much nicer Vanguard style.
Custom built 2-1 pipes
5/8" 304 stainless sissy bar made to perfectly match the back of the seat
Fender narrow/re radius and re work/fix of fender mounts
Gas tank rework, petcock bung change, filler neck swap plus body work
New tires front and back
white powder coated 'monkey' bars from Front Street Cycle
Broken exhaust stud drill out
New platforms and controls
New passenger pegs
Lots of other little bits and pieces and all the work that goes along with getting it there.
the red sporty tank is just on there for mock up while the tank liner cured up, the real tank is much nicer Vanguard style.
Wednesday, February 9, 2011
been busy
between moving into and building out the new shop and working everyday in the old shop i have had zero time to update here.

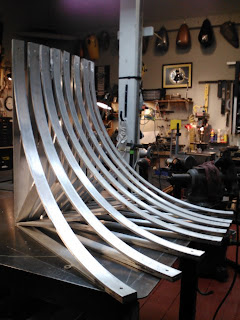

here's a teaser as to what i have been doing the past few days.
cold rolled 304 is fun to work and machine.
here's a teaser as to what i have been doing the past few days.
cold rolled 304 is fun to work and machine.
Friday, January 21, 2011
moving the shop
we found a bigger and much better space so we are moving the shop.
next weekend (feb 19th) and looking for whatever help we can get. hands, trucks, vans, trailers...any help is much appreciated.
we are meeting at the old shop at 8AM and hope to have everything in and done by early afternoon.
i will have drinks and food there for everyone and will owe you a huge debt of gratitude.
email me for specifics if your down to help and thanks.
next weekend (feb 19th) and looking for whatever help we can get. hands, trucks, vans, trailers...any help is much appreciated.
we are meeting at the old shop at 8AM and hope to have everything in and done by early afternoon.
i will have drinks and food there for everyone and will owe you a huge debt of gratitude.
email me for specifics if your down to help and thanks.
Friday, January 14, 2011
Friday, December 17, 2010
more tank work
i just cant seem to get away from tank work lately...
changing out the pos filler neck on this wassel along with adding a 22mm petcock bung to one side and fusing in a 1/4 pipe plug to the other.
getting ready to line it then my body guy is coming sometime this morning to make it pretty then it's off to Rich Ryzart for the royal treatment.
changing out the pos filler neck on this wassel along with adding a 22mm petcock bung to one side and fusing in a 1/4 pipe plug to the other.
getting ready to line it then my body guy is coming sometime this morning to make it pretty then it's off to Rich Ryzart for the royal treatment.
Monday, December 13, 2010
Wednesday, December 8, 2010
Tuesday, November 30, 2010
some good help
my buddy Kris has been on it lately.
he was looking for a little extra work between brokering mortgages and decided to give fabrication a try.
yeah, thats right.
we got this fender cut down and re fit for a guy today, stoked to have someone in the shop with me helping to get shit done!
he was looking for a little extra work between brokering mortgages and decided to give fabrication a try.
yeah, thats right.
we got this fender cut down and re fit for a guy today, stoked to have someone in the shop with me helping to get shit done!
Monday, November 29, 2010
Thursday, November 25, 2010
XS tail section on an early frame
so early XS650 frames are completely different than late ones, some of you may know this but i however did not. I priced this job as if it were a regular 4 hour weld on tail section job......16 hours later we are done ;)
lots of stuff needed to be made/machined and some major tweaking was undergone since someone previously did a VERY sketch job of building this guy a rigid tail section.
The thing looked like it was bent around a tree and of all things they used black plumbing pipe for tubing.
as you can see here the engine loop doesnt land anywhere near the tail section forward cross member.
so we added in this piece of 3/8 x 1 1/2 plate to catch the bottom of the loop.
i then had to machine an angled solid slug on the lathe to catch the piece of plate.
here she is all tacked up and ready to go back in the frame jig.
when it was all said and done it looked like it grew there. nice.
and the (almost) final product. just needs a few final welds and the shouldered seat bungs that i already spun on the lathe need tig'ed on.
lots of stuff needed to be made/machined and some major tweaking was undergone since someone previously did a VERY sketch job of building this guy a rigid tail section.
The thing looked like it was bent around a tree and of all things they used black plumbing pipe for tubing.
as you can see here the engine loop doesnt land anywhere near the tail section forward cross member.
so we added in this piece of 3/8 x 1 1/2 plate to catch the bottom of the loop.
i then had to machine an angled solid slug on the lathe to catch the piece of plate.
here she is all tacked up and ready to go back in the frame jig.
when it was all said and done it looked like it grew there. nice.
and the (almost) final product. just needs a few final welds and the shouldered seat bungs that i already spun on the lathe need tig'ed on.
Wednesday, November 17, 2010
Wednesday, November 10, 2010
the swap is coming together nicely
updates on the swap next month, things are really looking great. lots of good guys on board for this one, we are getting really excited to see what kind of turn out we can put together.
on the flyer tip, i seriously fucked up my back yesterday somehow in the shop so i have been nursing myself back to health all day which gave me a perfect opportunity to grab the shop laptop, open up illustrator and photoshop and have some fun with art today.
i like both of these very much
on the flyer tip, i seriously fucked up my back yesterday somehow in the shop so i have been nursing myself back to health all day which gave me a perfect opportunity to grab the shop laptop, open up illustrator and photoshop and have some fun with art today.
i like both of these very much
